Running k8s on EKS

Running k8s on EKS

February 07, 2019

EKS is the new AWS managed Service for Kubernetes launched at last Re-Invent 2018. EKS is not available in all regions right now. EKS an option for those who don't want to use KOPS. For this blog post, I will show how to easily set up a kubernetes cluster in AWS using EKS. EKS has some benefits, first of all, is a managed service that you are not locked in since the API is kubernetes based so you can easily migrate to other kubernetes installation or even other kubernetes installation in other cloud vendor or on-premises.

EKS Benefits

Managed Service without lock-in (Kubernetes API, specs, kubectl)
There is no Control Plane management (Multi-AZ, Automatic patches, and updates)
Secure by Default (Secure and encrypted communications between worker nodes and master)
Conformant and Compatible (EKS runs certified kubernetes. Compatible with standard k8s envs)

IMHO this is what most of the companies are looking for, in other words, *Serverless*.

The Pain Points

I don't want to paint a rosy picture of EKS like any new technology there are problems such as:

Poor Documentation - very few docs
Lack of Observability - It's a kind of black blocks compared with Kops.
When you do something wrong and har to figure it what you did it wrong.
Error-Prone - Is very easy to make mistakes(eksctl fix that)
In a Long Run is more expensive than running on EC2 with Kops
Alpha APIS is not supported.

It's important to keep in mind that EKS is a very new service and it should get better and the time passes.

Running Kubernetes in EKS using EKSCTL

EKSCTL is a great tool. Written in go, makes eks cluster creatin way less error-prone and many simples to get a cluster up and running. So let's get started! Basically, we will install the AWS Authenticator and EKSCTL them we can create the cluster and deploy nginx in kubernetes after that we can access the nginx application in the browser(before that you will need to enable the SG access for your IP). Them we destroy the cluster.

Install IAM Authenticator

wget https://amazon-eks.s3-us-west-2.amazonaws.com/1.11.5/2018-12-06/bin/linux/amd64/aws-iam-authenticator
chmod +x aws-iam-authenticator

eksctl

Install eksctl

curl --silent --location "https://github.com/weaveworks/eksctl/releases/download/latest_release/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp
sudo mv /tmp/eksctl /usr/local/bin

Create a cluster in EKS with eksctl

eksctl create cluster --name deveks --nodes=2 --region=us-west-2 --ssh-public-key=~/.ssh/kp_devpoc_k8s.pub

nginx.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: external-http-nginx-deployment
spec:
  selector:
    matchLabels:
      app: nginx
  replicas: 1
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx
        ports:
        - containerPort: 80
---
kind: Service
apiVersion: v1
metadata:
  name: external-http-nginx-service
spec:
  selector:
    app: nginx
  type: LoadBalancer
  ports:
  - name: http
    port: 80
    targetPort: 80

Create nginx application on k8s cluster in eks

kubectl create -f ~/nginx.yaml

Get cluster access via aws cli(alternative - not necessary)

aws eks --region us-west-2 update-kubeconfig --name deveks
kubectl get svc

view raw eks.md hosted with ❤ by GitHub

Creating a cluster

Deploying nginx in Kubernetes

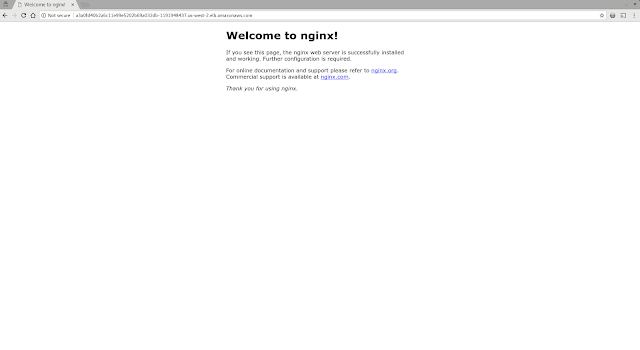

Nginx up and running on AWS(Need to enable 80 port SG access)

Nginx AWS ELB Created by EKS and K8s with EKSCTL

K8s Nodes Running on EC2 via EKS and EKSCTL

Destroying the cluster

Cheers,

Diego Pacheco
